High Power Resistors with Gold Aluminum Resistors

Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: RH

Production Capacity: 10000pieces/week

Delivery Date: 5-7days

Type: Fixed Resistor

Brand Name: ZENITHSUN

Resistance Tolerance: ±0.1%,±0.5%,±1%,±5%,±10%

Temperature Coefficient: 300ppm

Mode: Grid Fixed Or Not Fixed Typ...

Lead wire: optional

Connection form: multiple

Means of Transport: Ocean,Air

Packing: carton

Package Type: Surface Mount

Technology: Wirewound

Resistance: 0.01Ω-100KΩ

Rated Power: 5W-500W

Color: gold

Material: aluminum

Mount: optional

High Power Resistors with Gold Aluminum Resistors
1 Resistance to shock, strength power
2 Fast dissipation heat, high stability, long life
3 OME

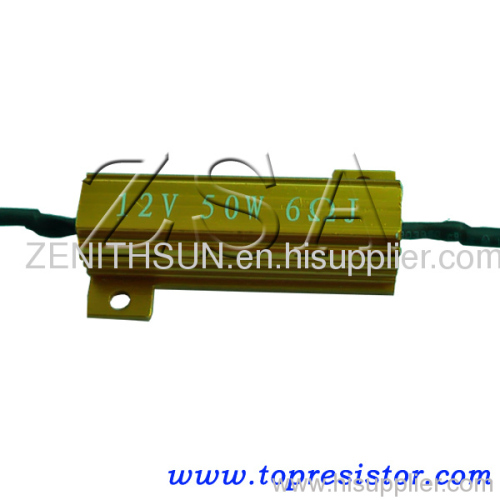

High Power Resistors with Gold Aluminum Resistors

RH&NH Aluminum Resistor is also called metal aluminum resistor, non-induction aluminum resistor, golden aluminum resistor, LED aluminum Resistor, etc. according to different applications and customs. Aluminum alloy shell with grooves on the surface for better dissipation. Owning small size, high power rating, resistance to high temperature and high over load, high precision, high stability, strong construction, favorable mechanical protection, easy installation, etc.

RH&NH aluminum resistor is also the best alternative for current sense resistor, standard low-induction resistor and untra precision resistor.

ZENITHSUN also can provie welding high temperature wires or clips to the resistors for customers when RH&NH aluminum resistor is used in Automobile LED lights industry.

Material

1. Encapsulant: S: Silicone, C: Cement; End caps: Stainless steel.

2. Core: Ceramic steatite or alumina.

3. Housing: Aluminum with hard anodic coating.

4. Element: Copper-nickel alloy, nickel-chrome alloy or manganese copper.

Features

1. High power rating, small size and ultra precision; High stability, strong construction.

2. The colours (golden yellow, red, silver) are available.

3. Standard Terminals: 5~200WTinned terminals, 100~500WThreaded terminals; The ends connected with wires or terminal blades follow customer requirement.

4. Standard winding & non-inductive winding available. When required add "N" to the part number.

5. For non-standard technical requirements and custom special applications, please

6. Delivery:5-7days.

7. Conforms to the ROHS standard and the LEAD-FREE non-lead standard.

Application

Widely used in Inverters, Automation equipment, Acoustics, Prescaler, Aging Power testing, Auto accessories, Auto LED industry.
